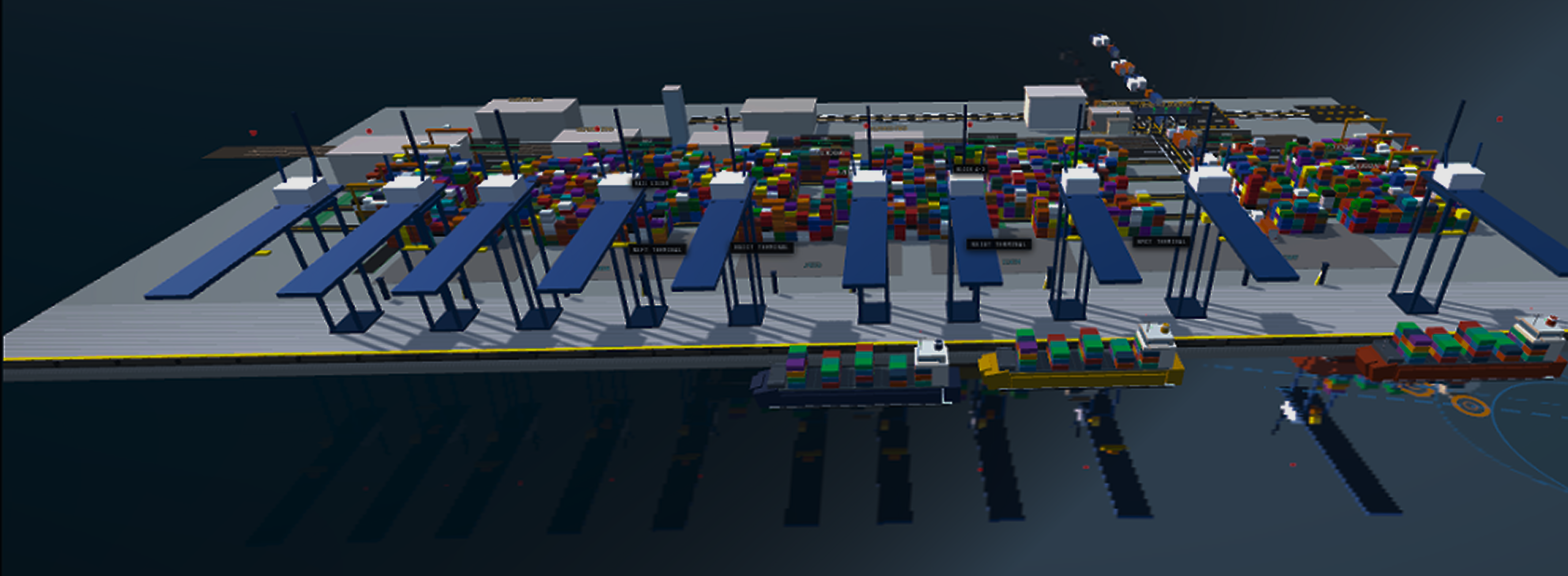

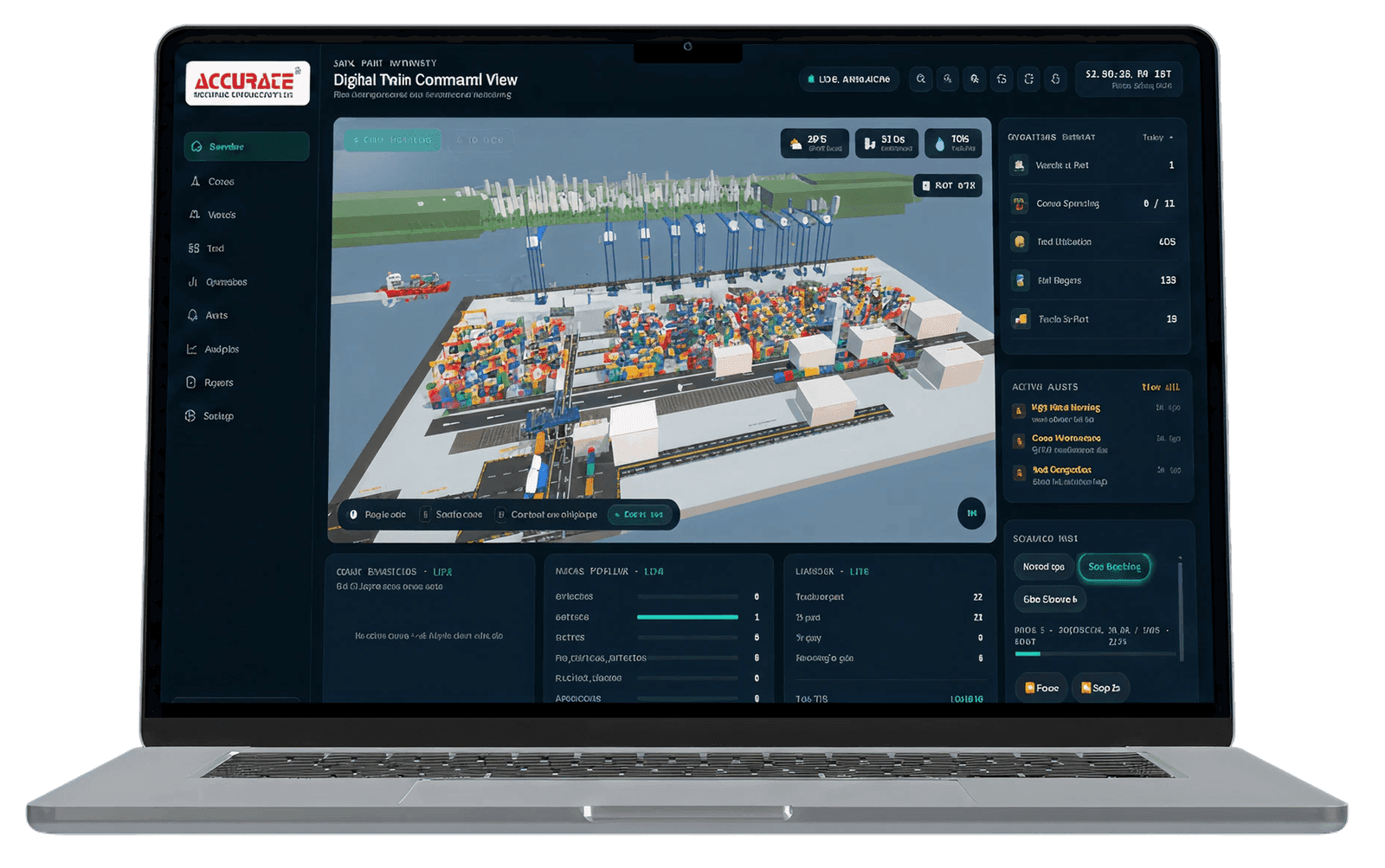

Real-time 3D port view
A live, three-dimensional visual of the entire port scene—terminals, roads, berths—all updating continuously so operators always see the current state at a glance.
Digital Twin

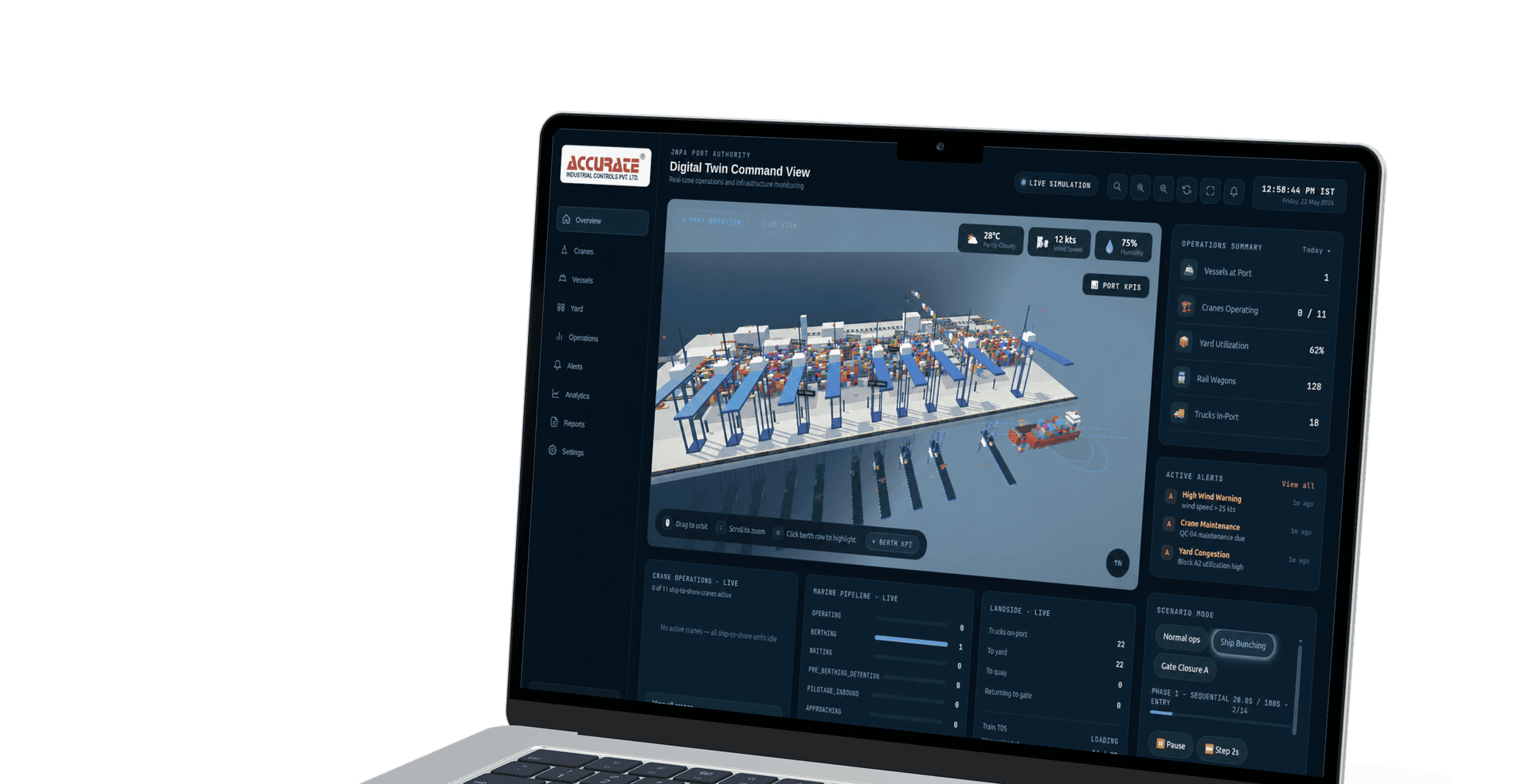

MONITORING
What is a DIGITAL TWIN?

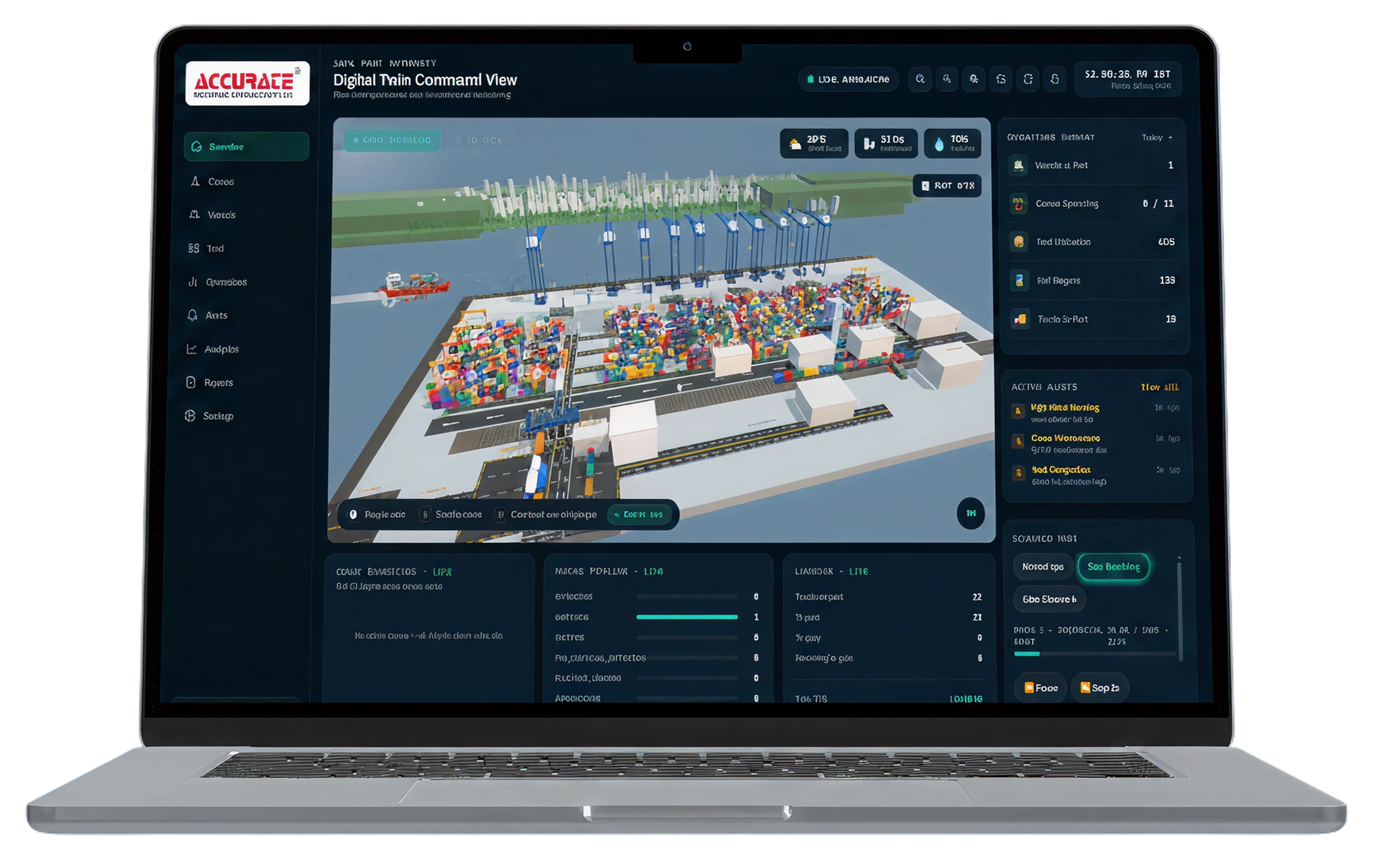

JNPA Digital Twin is a browser-based 3D platform that provides a real-time operational view of the Jawaharlal Nehru Port. It visualizes key port assets—including terminals, vessels, cranes, trucks, gates, roads, and rail links—in a single interactive environment, enabling stakeholders to monitor operations, track movement, and identify congestion efficiently.
Core Capabilities
Terminal activity visualization
Shows which terminal blocks and cranes are active, idle, or busy with cargo handling—making it easy to see resource usage across the port at any moment.
Rail and road flow mapping
Displays the movement of goods and vehicles along internal roads and rail links, including rake positions and any delays or diversions.
Operator notification overlays
Important alerts, warnings, and status updates are displayed directly on the 3D scene as overlays, so operators don't need to switch between screens to stay informed.
Vessel and truck tracking
Monitors the position and movement of ships and trucks within the port, showing where they are, where they're headed, and their current status (arriving, docked, queued, departing).
Gate congestion monitoring
Tracks vehicle queues and wait times at entry and exit gates, highlighting bottlenecks so operators can act before congestion spreads.
Event alert cascade
When one incident occurs (like a gate closure), the system automatically triggers and displays the chain of follow-on effects — rerouting, delays, alerts — across the port in sequence.
Scenario-based simulation
Allows planners to run 'what-if' situations—replaying past events or simulating future ones—to test responses and improve decision-making without affecting live operations.
Key Platform Highlights
A snapshot of the platform's key capabilities, operational scale, and real-time monitoring performance
6+
Core entity types tracked (Ships, Trucks, Cranes, Road Gate, Rail)
360°
Complete port operational visibility
1
Unified 3D operational port view
24/7
Continuous port monitoring capability
CORE SYSTEM MODULES
Vessel Tracking Model
Tracks ship positions, berth status, and movement cycles across the port scene. It supports arrival, docking, operation, and departure states so operators can understand vessel flow clearly.
Landside Traffic Module
Visualizes trucks, road congestion, gate queues, and cargo rerouting around the terminal. This helps highlight bottlenecks and operational delays on the landside network.
Simulation Engine Module
Generates structured, repeatable state changes for port entities using deterministic logic. This allows the scene to replay scenarios and later connect to real port feeds.
Terminal Activity Module
Displays terminal blocks, crane operations, and cargo handling areas in 3D. It gives a clear visual picture of which terminal zones are active and how resources are being used.
Event Cascade Module
Handles operational incidents such as gate closure, inter-terminal transfers, ITHRO alerts, FOIS exceptions, and operator notifications. It shows how one disruption can trigger a visible chain reaction across port operations.
Tech Integration
Tracking Tech
The JNPA Digital Twin combines operational systems and simulated live data to deliver a unified, scalable, and intelligent real-time port view.
What the platform can do?
Live Port Visibility
See every vessel, truck, crane, and gate in one 3D view
Instant Congestion Detection
Spot bottlenecks at gates, roads, and terminals immediately
Event Chain Awareness
Understand how one disruption cascades across operations
Scenario Planning
Simulate and prepare for disruptions before they happen
Operator Control
Override, inspect, and intervene at any point in real time
